Single Piece Design Screwed End / Socket weld
Product Range

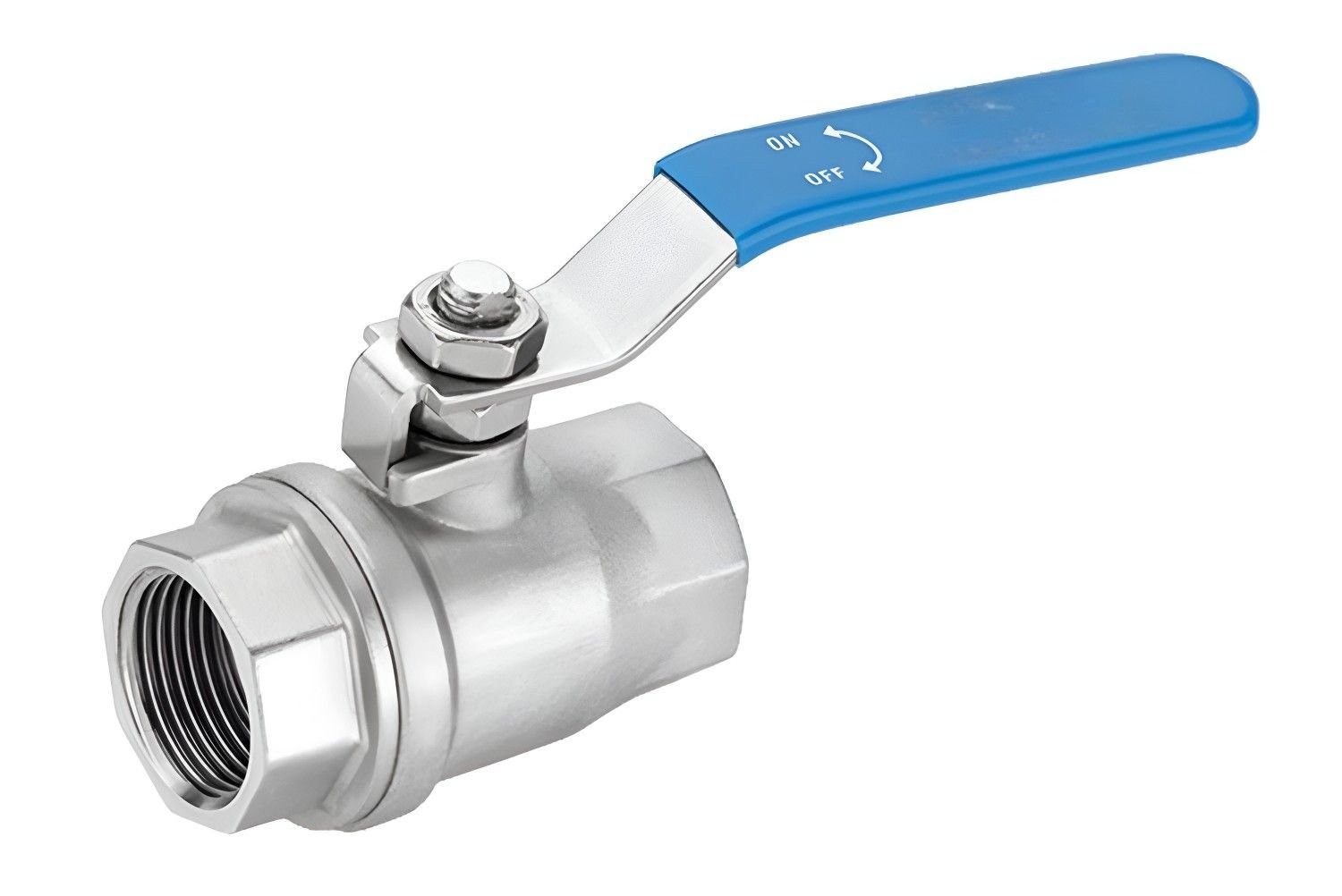

Single Piece Design Screwed End / Socket weld
The Single Piece Design Screwed End / Socket Weld Valve from Sparkey Valve and Fitting Pvt. Ltd. is engineered for compactness, durability, and leak-proof performance in demanding industrial applications. Designed as a single-piece body construction, it eliminates potential leak paths associated with multi-piece assemblies, ensuring robust sealing and extended service life. This valve is ideal for high-pressure, high-temperature pipelines where secure and permanent connections are essential. Its compact body design makes it a preferred choice for installations where space limitations are a concern.
Heavy-Duty Single Piece Valvefor Secure Piping Connections
Constructed using high-grade materials such as stainless steel, carbon steel, and alloy steel, the valve delivers excellent resistance to corrosion, wear, and harsh working conditions. The screwed end and socket weld connection types offer reliable installation options, making it suitable for both threaded and welded pipeline systems
Sparkey Valve and Fitting Pvt. Ltd. focuses on precision engineering and manufacturing excellence, ensuring that every valve delivers consistent performance and meets stringent industrial standards. The valve is widely used for controlling liquid and gas flow in critical operations, offering efficient shutoff capabilities and minimal pressure loss across the pipeline. Its simple structure allows smooth operation and low maintenance requirements. This valve is designed for medium to high-pressure applications and is extensively used in oil and gas pipelines, chemical processing plants, water treatment systems, steam lines, and various industrial process controls.
Features
- Corrosion-resistant materials
- Smooth flow and minimal pressure drop
- High pressure and temperature resistance
- Low maintenance requirement
- Leak-proof sealing
- Screwed and socket weld ends
Applications
- General Industrial Process Pipelines
- Irrigation & Pumping Stations
- Firefighting & Safety Systems
- HVAC & Industrial Utility Lines
- Pharmaceutical & Food Processing
- Power Generation Plants
Specification
| Size Range | ½” to 4” (DN15 to DN100) |
| Pressure Rating | PN16, PN25, PN40 / Class 150, 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Connection Types | Screwed (NPT/BSP) / Socket Weld (SW) |
| Temperature Range | -20°C to +350°C (depending on material) |
| Suitable Media | Water, Oil, Steam, Gas, Chemicals |
| Flow Pattern | Full Bore / Reduced Bore (Optional) |
| End Configuration | Threaded or Welded |
| Sealing Type | Leak-proof tight sealing |
| Standards Compliance | API 602, ASME B16.11, BS 3799 |
