Wafer Type Design

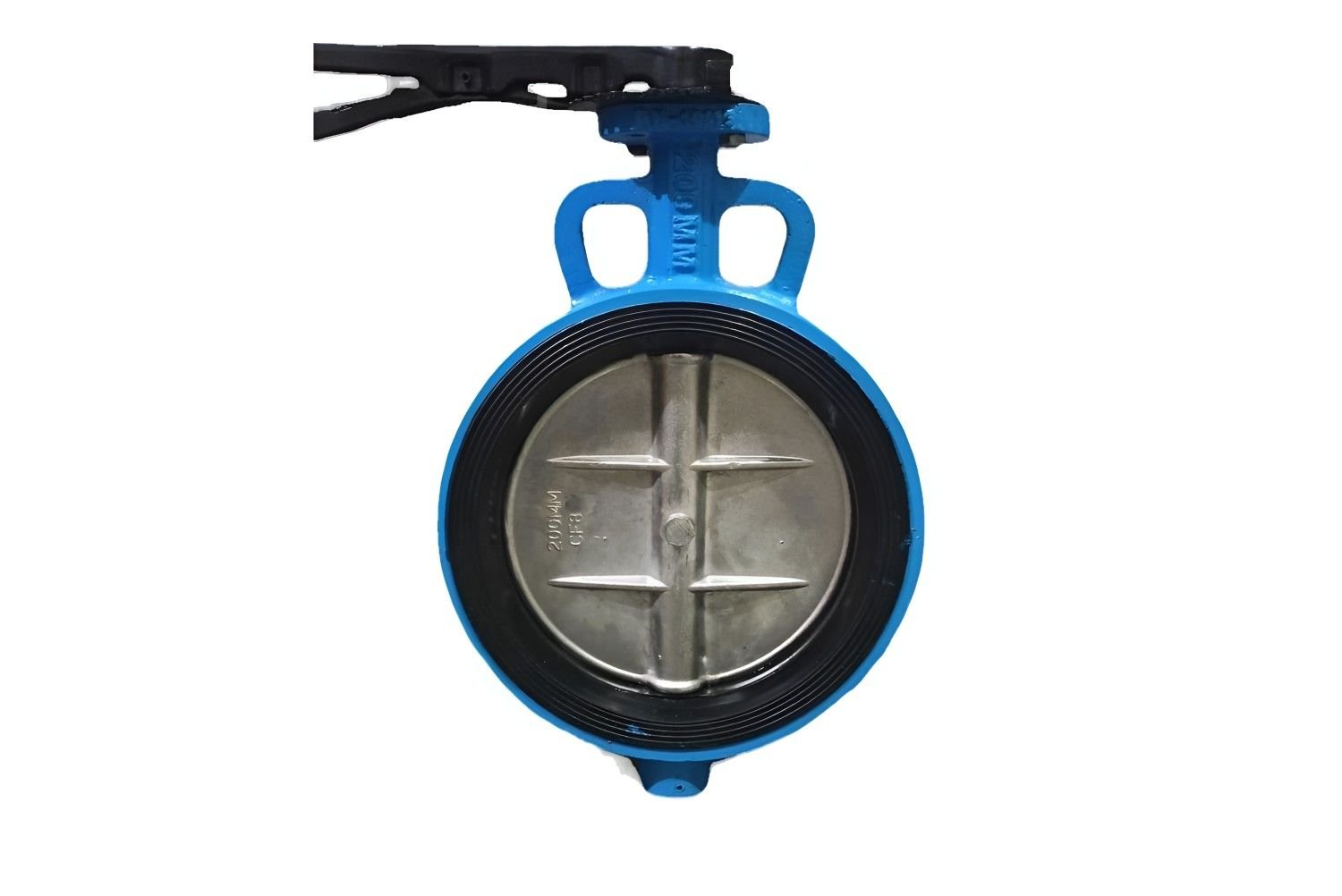

The Wafer Type Butterfly Valve offered by Sparkey Valve and Fitting Pvt. Ltd. is designed for compact and efficient flow control in industrial piping systems. Its wafer-style body allows it to be sandwiched between two flanges, reducing space requirements and providing a lightweight solution without compromising durability. The design ensures smooth and reliable operation, making it ideal for both on/off and throttling applications. The precision-engineered disc and seat offer tight sealing, minimizing leakage and ensuring dependable performance even in challenging media, including water, air, steam, and chemicals.
Wafer Type Butterfly Valve for Compact,Reliable Industrial Flow Control
Constructed from high-quality materials such as stainless steel, carbon steel, and alloy steel, the valve provides excellent resistance to corrosion, wear, and high temperatures. Its simple design reduces maintenance needs while maintaining operational reliability. Sparkey Valve and Fitting Pvt. Ltd. prioritizes both operational performance and installation convenience.
The wafer-type construction allows for easy installation between standard flanges without additional bolts or modifications, which saves time and cost during system assembly. Its compact size makes it suitable for pipelines with space constraints, while the full bore design ensures minimal pressure drop and maximum flow efficiency. This valve is widely used across water treatment plants, HVAC systems, chemical processing, food and beverage industries, and power plants. Backed by Sparkey Valve and Fitting Pvt. Ltd.’s engineering expertise and quality assurance, the Wafer Type Butterfly Valve combines durability, operational efficiency, and cost-effectiveness.
Features
- Lightweight design
- Versatile operation
- Low maintenance requirement
- Easy installation
- Durable construction
- Compact wafer-style design
Applications
- Water Treatment Plants
- HVAC Systems
- Chemical and Petrochemical Plants
- Food & Beverage Industry
- Power Generation
- Fire Fighting Systems
Specification
| Size Range | 2” to 48” (DN50 to DN1200) |
| Pressure Rating | PN10 / PN16 / PN25 / ANSI Class 150 / 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Disc Material | Stainless Steel, Ductile Iron, Alloy Steel |
| Seat Material | PTFE, RPTFE, EPDM, NBR, Metal (application dependent) |
| Temperature Range | -20°C to +200°C (depends on seat and body material) |
| Operation Type | Manual, Gear, Pneumatic, or Electric Actuation |
| Flow Type | Bidirectional / Full Bore Flow |
| Standards Compliance | API 609, ISO 5752, EN 593, ASME B16.34 |
| Leakage Class | ISO 5208 / API 598 |
