Globe Valve OS&Y Bolted Bonnet Design Flanged End

Globe Valve OS&Y Bolted Bonnet Design Flanged End

Product Range

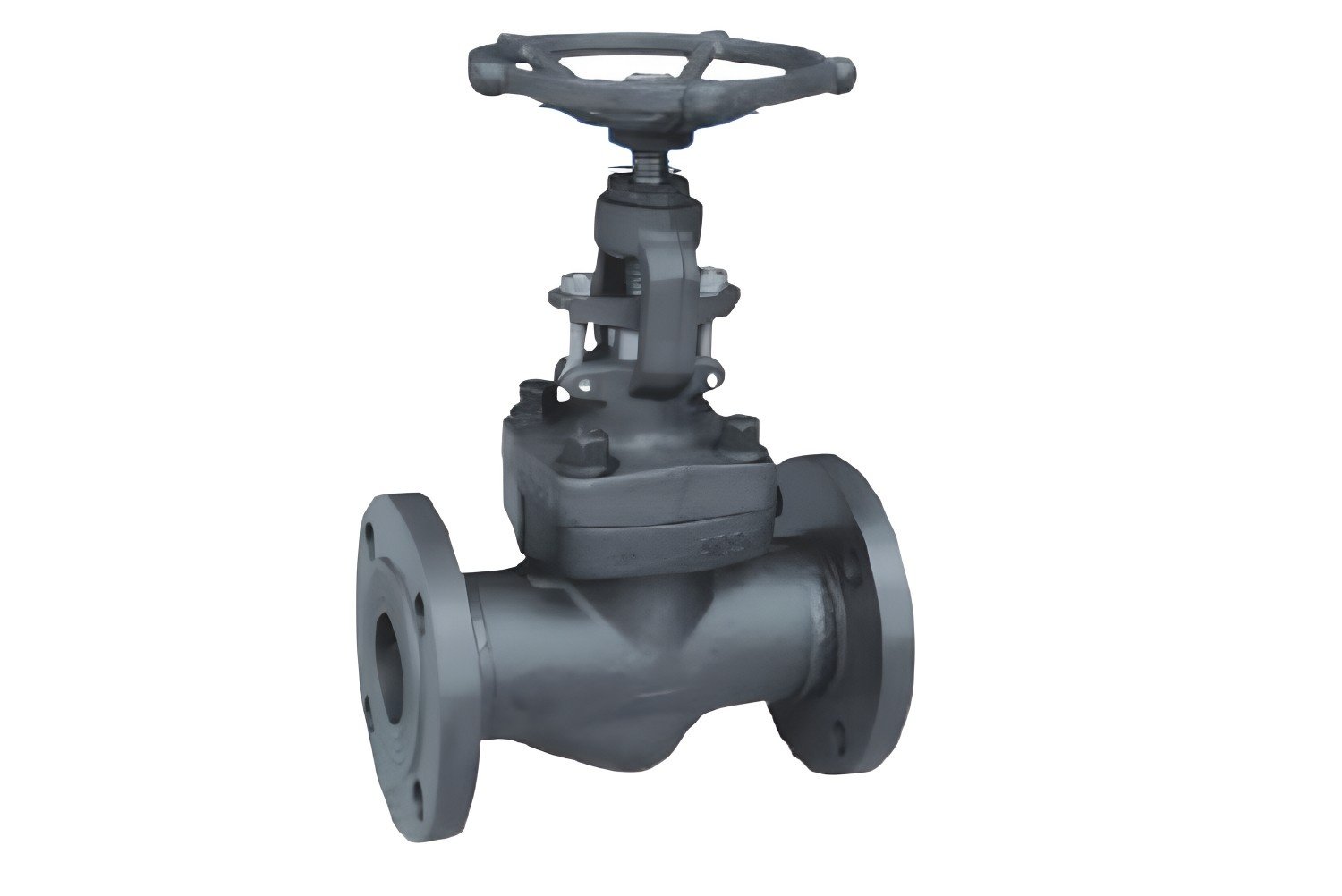

Globe Valve OS&Y Bolted Bonnet Design Flanged End

The Globe Valve with OS&Y Bolted Bonnet Design and Flanged End from Sparkey Valve and Fitting Pvt. Ltd. is engineered to provide superior flow regulation in industrial piping systems. Its outside screw and yoke (OS&Y) mechanism ensures clear visual indication of valve position, enhancing operational safety. Designed for precise throttling, it offers reliable performance even under high-pressure and high-temperature variations.

Corrosion-Resistant Gate Valve EnsuresLong-Term Reliability in Pipelines

Manufactured using high-grade materials, the valve offers excellent resistance to corrosion, erosion, and mechanical stress. Its rugged construction ensures long service life even in extreme operational environments.

Built with a bolted bonnet construction, the valve allows easy maintenance access, enabling hassle-free disassembly for inspection or repair. This robust design enhances durability, especially in facilities where consistent valve performance is critical. The flanged end connection ensures secure installation and compatibility with standard industrial pipelines, making it suitable for both retrofit and new applications. Each valve undergoes rigorous quality checks and testing procedures in line with international standards to guarantee longevity and performance reliability.

Features

Applications

Specification

Size Range½" to 24" (or as per requirement)
Pressure RatingANSI Class 150 / 300 / 600 & PN10–PN40
Body MaterialCast Steel, Stainless Steel, Alloy Steel, Duplex
Bonnet DesignBolted, replaceable gasket type
Stem TypeRising Stem (Outside Screw & Yoke)
Seat TypeRenewable or integral (metal-to-metal / soft seat)
Flow DirectionUnidirectional
Temperature Range–29°C to +425°C (depending on material)
Operation TypeHandwheel / Gear / Electric or Pneumatic Actuator
Leakage ClassAPI 598 / EN 12266
